Name: Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
SKU: TW011
Price: 999 USD
Availability: InStock

Hogar > productos > Cables de tungsteno recubiertos de oro >

Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String

gold plated tungsten wire thread

gold plating tungsten line string

tungsten wire with gold plating

Nombre de la marca:

WINNER

Certificación:

ISO9100

Número de modelo:

TW011

Éntrenos en contacto con

Pida una cita

Detalles del producto

Tipo de producto:

Alambre de unión

Espesor del recubrimiento:

0.0003 mm

Material:

Tungsteno

Revestimiento:

Oro

Metros de longitud:

500/1000

Método de unión:

Ultrasónico

Rango de temperatura:

-40 ° C a 200 ° C

Acabado superficial:

brillante

Conductividad:

98%

Tamaño del paquete:

100 metros

Fuerza de enlace:

Alto

Paquete:

Carrete

Resaltar:

gold plated tungsten wire thread

gold plating tungsten line string

tungsten wire with gold plating

Pago y términos de envío

Cantidad de orden mínima

1 pieza

Precio

999

Detalles de empaquetado

Rollo, embalaje neutrial o con logotipo OEM

Tiempo de entrega

5-8 días laborables

Condiciones de pago

LC, Unión Occidental, T/T

Capacidad de la fuente

100000 rollos por mes

Productos relacionados

Alambre de filamento de tungsteno micrónico chapado en oro de alta pureza disponible a un precio asequible

Consiga el mejor precio

Vídeo

Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String

Consiga el mejor precio

Vídeo

Ultra Premium Gold Plated Micron Tungsten Wire For Electronic And Scientific Research

Consiga el mejor precio

High-frequency Customized Diameter Gold Plated Coated Tungsten Spooled Wire

Consiga el mejor precio

Éntrenos en contacto con

Contacto ahora

Descripción de producto

Product Description

Gold is the most commonly used thin coating material and does not chemically react under normal conditions. Gold and tungsten have exactly the same density, but their mechanical properties and melting temperatures vary.The most common way to combine the two is to plate gold on the tungsten wire to form a very thin gold-plated layer, which can improve the wettability during welding, prevent chemical corrosion, reduce the secondary emission of electrons, and achieve good performance. electrical contact and conductivity. Gold-plated tungsten wires have the advantages of good tensile strength, strong wear resistance, good plasticity, strong durability, superior oxidation resistance and low production cost.

Product Specifications

Material	Tungsten
Purity	Wu≥ 99.99%
Gold-plated thickness	0.3um
Wire diameter	0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm
Length	1000/2000 meter (cut from roll)

Gold plated tungsten wire properties (Theoretical)
Compound Formula	W
Molecular Weight	183.84
Appearance	Metallic wire
Melting Point	3410 °C
Boiling Point	5660 °C
Density	19.3 g/cm3 (25 °C)
Solubility in H2O	N/A
Electrical Resistivity	4.9 μΩ-cm, (20 °C)
Exact Mass	183.951 g/mol
Monoisotopic Mass	183.951 g/mol

Key Features

Shiny golden surface condition - brighter than black or white tungsten wire
Exceptional high temperature resistance and high melting point
Low coefficient of thermal expansion
Superior corrosion resistance compared to ordinary tungsten wire

Applications

Gold-plated tungsten wire serves as an electrode in photocopiers, replacing corrosion-resistant tungsten wire and tungsten aluminum wire. It also functions as an ideal corrosion-resistant electron emission material with applications in high-energy physics, meteorology, and other scientific research fields.

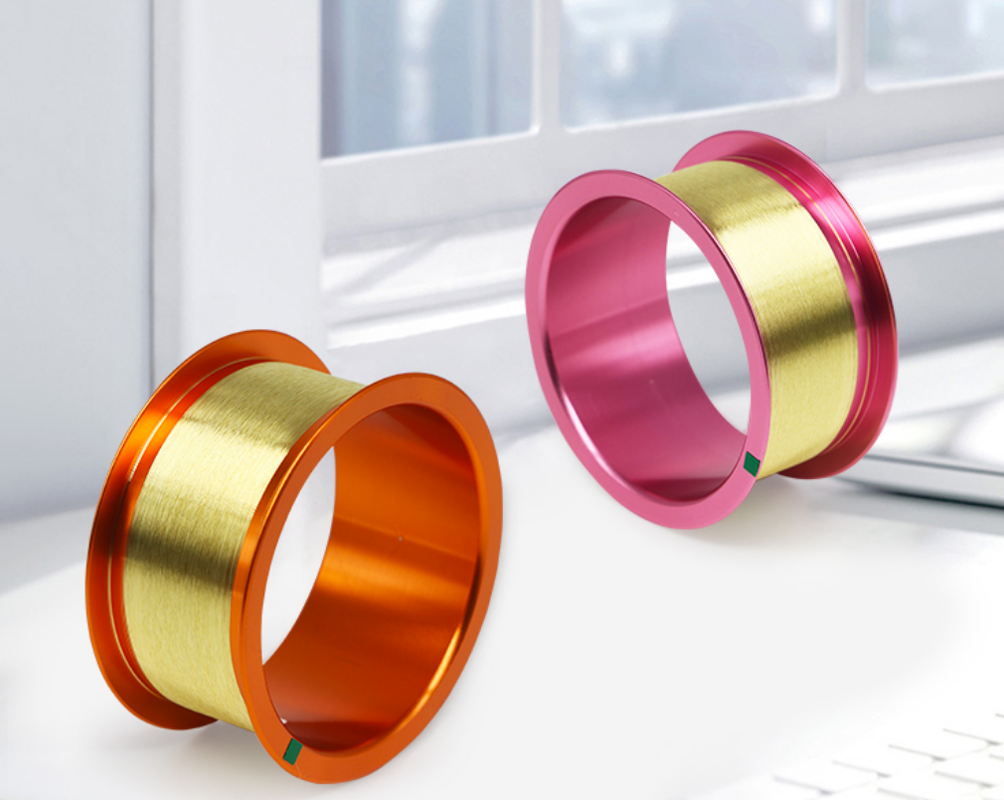

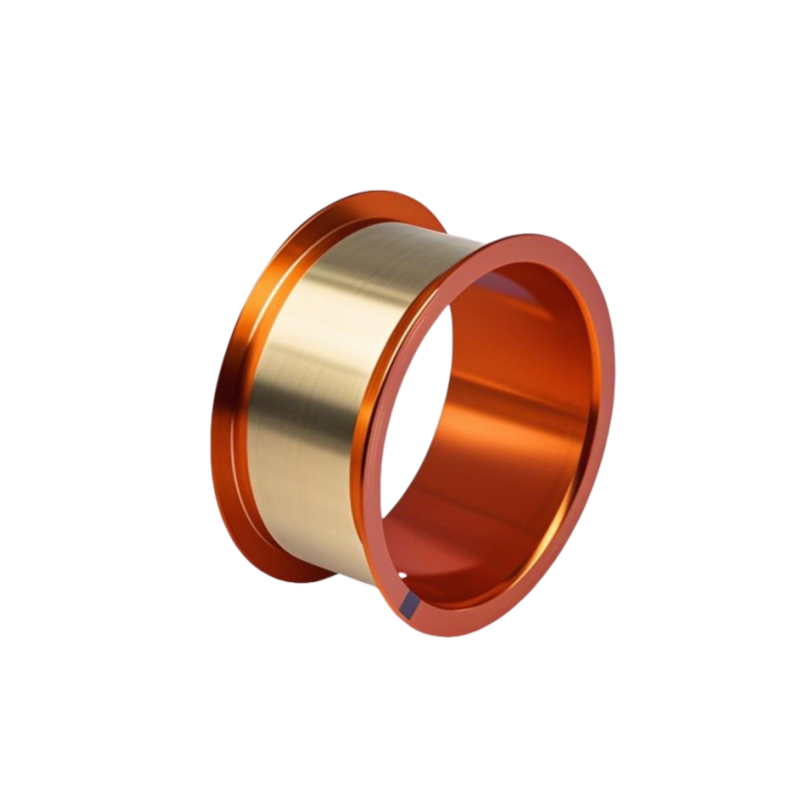

Product Images
