Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT)

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT)

0.5amps Current Rating Spring Test Probe

50mΩ Max Contact Resistance Pogo Pin

1.50mm Full Stroke ICT Test Probe

Lugar de origen:

Porcelana

Nombre de la marca:

WINNER

Certificación:

ISO9100

Éntrenos en contacto con
Pida una cita
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT)
Detalles del producto
Nombre del producto:
sonda de prueba de tamaño estándar
Émbolo:
BeCu/SK4, chapado en oro
barril:
Bronce, Dorado
Primavera:
SWP, Au en Ni palted
Disponibilidad:
Tamaños personalizados disponibles
Revestimiento:
Chapado en oro
Cantidad mínima de pedido:
3000pcs
Receptor:
Oro de cobre amarillo plateado
Calificación actual:
0.5 amperios
Resistencia de contacto:
50 millones de hms máximo
Golpe completo:
1.50m m
Trazo nominal:
1.00 mm
Fuerza de resorte:
1,0/2,0/3,0N
CEM1:
0,45 mm (0,0,67)
FR4:
0,45 mm (0,69)
Estándar:
-40℃-+80℃
Diseño especial "C":
-100℃-+200℃
Resaltar:

0.5amps Current Rating Spring Test Probe

,

50mΩ Max Contact Resistance Pogo Pin

,

1.50mm Full Stroke ICT Test Probe

Pago y términos de envío
Cantidad de orden mínima
3000pcs
Precio
999
Detalles de empaquetado
Empaque neutrial o con logotipo OEM
Tiempo de entrega
5-8 días laborables
Condiciones de pago
LC, Unión Occidental, T/T
Capacidad de la fuente
100000 rollos por mes
Productos relacionados
Buen precio Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing en línea

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Consiga el mejor precio
Buen precio Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance en línea

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance

Consiga el mejor precio
Buen precio Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications en línea

Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications

Consiga el mejor precio
Buen precio CHINA Supply YF-100 Brass Material Spring Contact Probe Pin en línea

CHINA Supply YF-100 Brass Material Spring Contact Probe Pin

Consiga el mejor precio
Éntrenos en contacto con
Contacto ahora
Descripción de producto
High Demand Gold Plated Brass Barrel Spring Test Probe P030
Customized Brass Barrel Stainless Steel Spring Test Probe P030 for In-Circuit-Test (ICT)
Production Specifications
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 0
Product Images
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 1 Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 2 Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 3

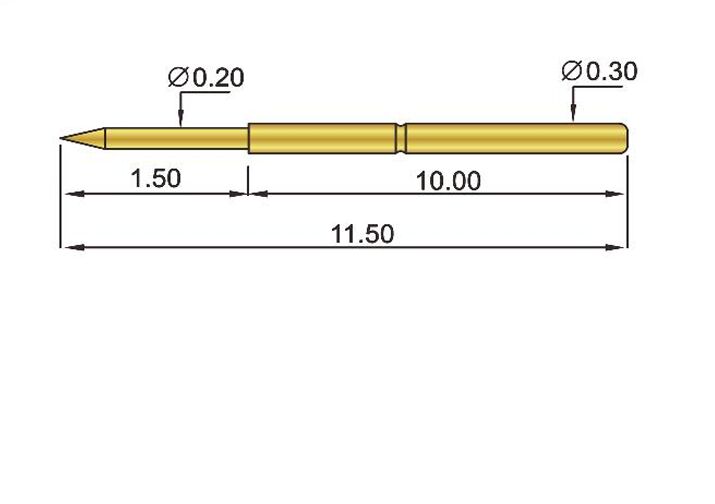

Detailed Component Illustration
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 4
Comparison of different test probe tip types and configurations
Customization Options
At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance.
Manufacturing Process
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 5
Our probe manufacturing facility
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 6
Quality control inspection
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 7
Packaged probes ready for shipment
Contact us to request samples or a quotation for your specific application requirements.
