Name: Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Hogar > productos > Sondas de prueba de resorte >

Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications

Brass Barrel Spring Test Probe

Stainless Steel Spring Pogo Pin

1.0/2.0/3.0N Spring Force ICT Test Probe

Lugar de origen:

Porcelana

Nombre de la marca:

WINNER

Certificación:

ISO9100

Éntrenos en contacto con

Pida una cita

Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications

Detalles del producto

Nombre del producto:

sonda de prueba de tamaño estándar

Émbolo:

BeCu/SK4, chapado en oro

barril:

Bronce, Dorado

Primavera:

SWP, Au en Ni palted

Disponibilidad:

Tamaños personalizados disponibles

Revestimiento:

Chapado en oro

Cantidad mínima de pedido:

3000pcs

Receptor:

Oro de cobre amarillo plateado

Calificación actual:

5Amps

Resistencia de contacto:

50 millones de hms máximo

Golpe completo:

6.4m m

Trazo nominal:

4.3 mm

Fuerza de resorte:

1,0/2,0/3,0N

CEM1:

2,7 mm (0,0,67)

FR4:

2,72 mm (0,69)

Estándar:

-40℃-+80℃

Diseño especial "C":

-100℃-+200℃

Resaltar:

Brass Barrel Spring Test Probe

Stainless Steel Spring Pogo Pin

1.0/2.0/3.0N Spring Force ICT Test Probe

Pago y términos de envío

Cantidad de orden mínima

3000pcs

Precio

999

Detalles de empaquetado

Empaque neutrial o con logotipo OEM

Tiempo de entrega

5-8 días laborables

Condiciones de pago

LC, Unión Occidental, T/T

Capacidad de la fuente

100000 rollos por mes

Productos relacionados

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Consiga el mejor precio

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance

Consiga el mejor precio

Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications

Consiga el mejor precio

CHINA Supply YF-100 Brass Material Spring Contact Probe Pin

Consiga el mejor precio

Éntrenos en contacto con

Contacto ahora

Descripción de producto

Spring Contact Probe Spring Test Probe YF-004

Customized Brass Barrel Stainless Steel Spring Test Probe YF-004 for In-Circuit-Test (ICT)

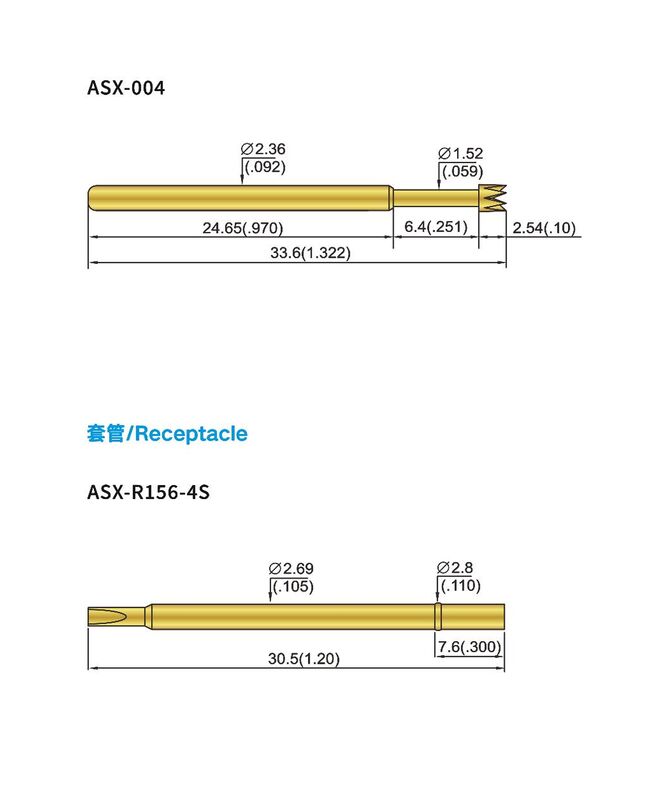

Production Specifications

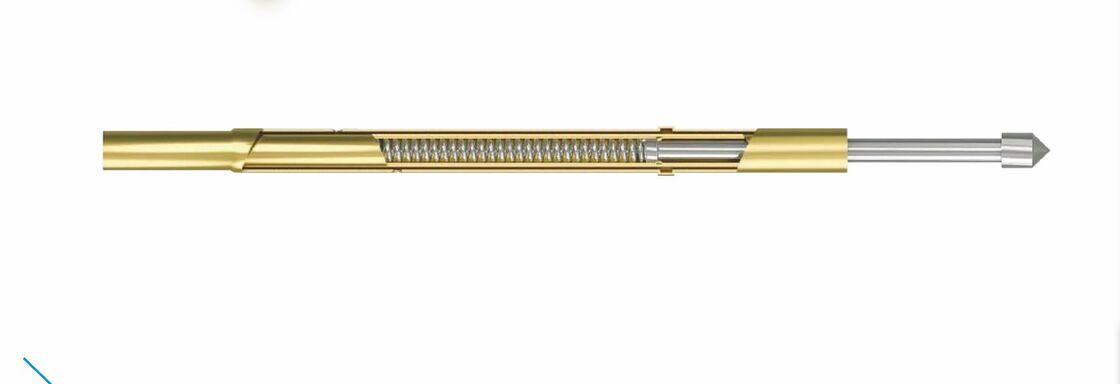

Product Images

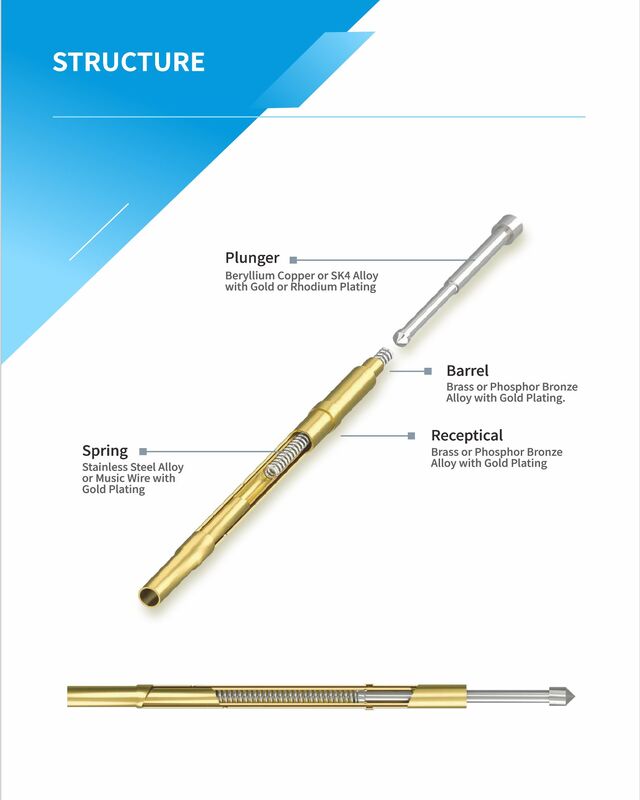

Detailed Component Illustration

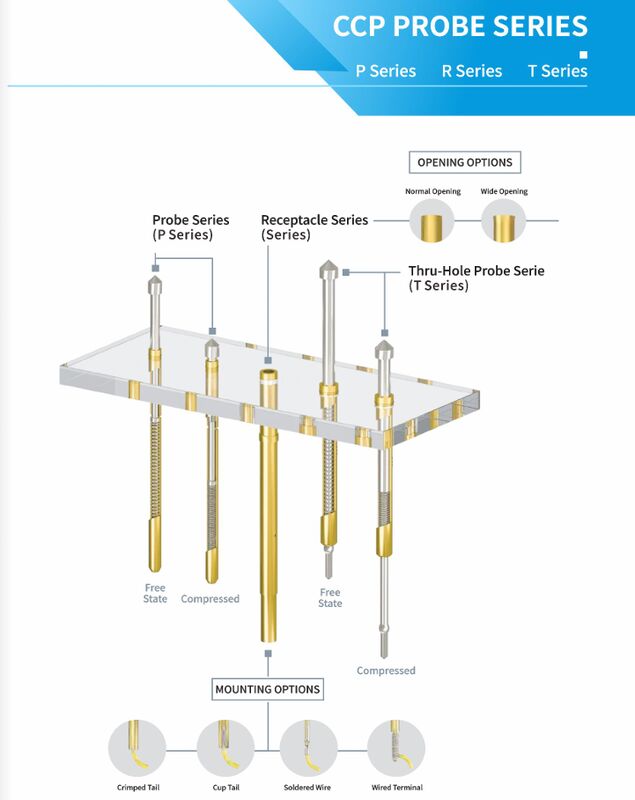

Comparison of different test probe tip types and configurations

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
