Hogar > productos > Sondas de prueba de resorte >
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications

Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications

6.4mm Full Stroke Spring Test Probe

4.3mm Rated Stroke Pogo Pin

1.0N Spring Force ICT Test Probe

Lugar de origen:

Porcelana

Nombre de la marca:

WINNER

Certificación:

ISO9100

Éntrenos en contacto con
Pida una cita
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications
Detalles del producto
Nombre del producto:
sonda de prueba de tamaño estándar
Émbolo:
BeCu/SK4, chapado en oro
barril:
Bronce, Dorado
Primavera:
SWP, Au en Ni palted
Disponibilidad:
Tamaños personalizados disponibles
Revestimiento:
Chapado en oro
Cantidad mínima de pedido:
3000pcs
Receptor:
Oro de cobre amarillo plateado
Calificación actual:
3Amps
Resistencia de contacto:
50 millones de hms máximo
Golpe completo:
6.4m m
Trazo nominal:
4.3 mm
Fuerza de resorte:
1.0n
CEM1:
1,0 mm (0,039)
FR4:
1,0 mm (0,039)
Estándar:
-40℃-+80℃
Diseño especial "C":
-100℃-+200℃
Resaltar:

6.4mm Full Stroke Spring Test Probe

,

4.3mm Rated Stroke Pogo Pin

,

1.0N Spring Force ICT Test Probe

Pago y términos de envío
Cantidad de orden mínima
3000pcs
Precio
999
Detalles de empaquetado
Empaque neutrial o con logotipo OEM
Tiempo de entrega
5-8 días laborables
Condiciones de pago
LC, Unión Occidental, T/T
Capacidad de la fuente
100000 rollos por mes
Productos relacionados
Buen precio Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications en línea

Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications

Consiga el mejor precio
Buen precio 2.36mm Spring Test Probe with 9 Claws and 100 Pcs Brass Barrel Spring Loaded Test Pin for Industrial Testing en línea

2.36mm Spring Test Probe with 9 Claws and 100 Pcs Brass Barrel Spring Loaded Test Pin for Industrial Testing

Consiga el mejor precio
Buen precio Custom Sizes Brass Barrel Stainless Steel Spring Test Probe for Precision PCB Testing en línea

Custom Sizes Brass Barrel Stainless Steel Spring Test Probe for Precision PCB Testing

Consiga el mejor precio
Buen precio 100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing en línea

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

Consiga el mejor precio
Éntrenos en contacto con
Contacto ahora
Descripción de producto
Customized Brass Barrel Stainless Steel Spring Test Probe YF050 for In-Circuit-Test (ICT)

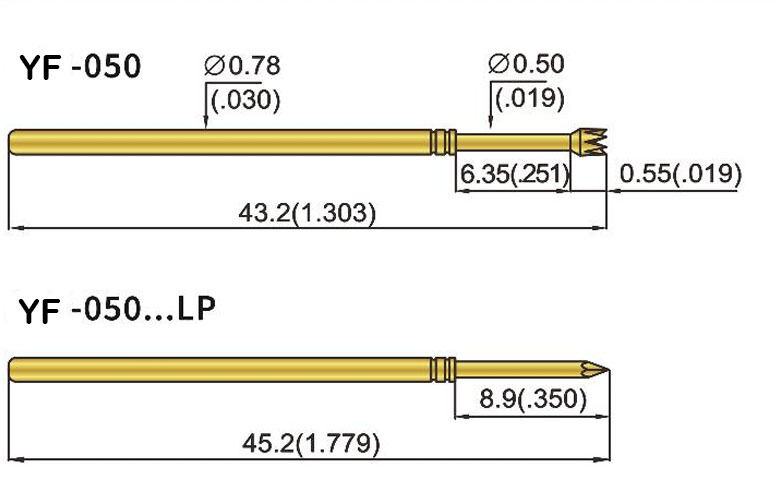

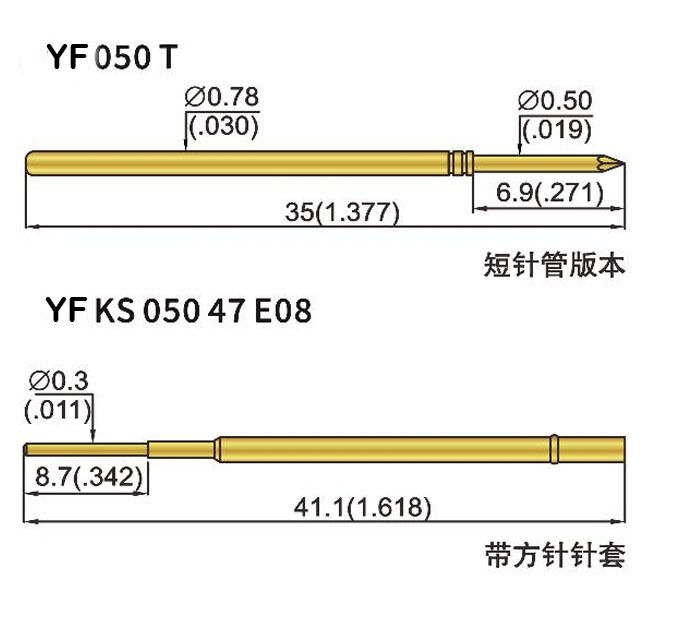

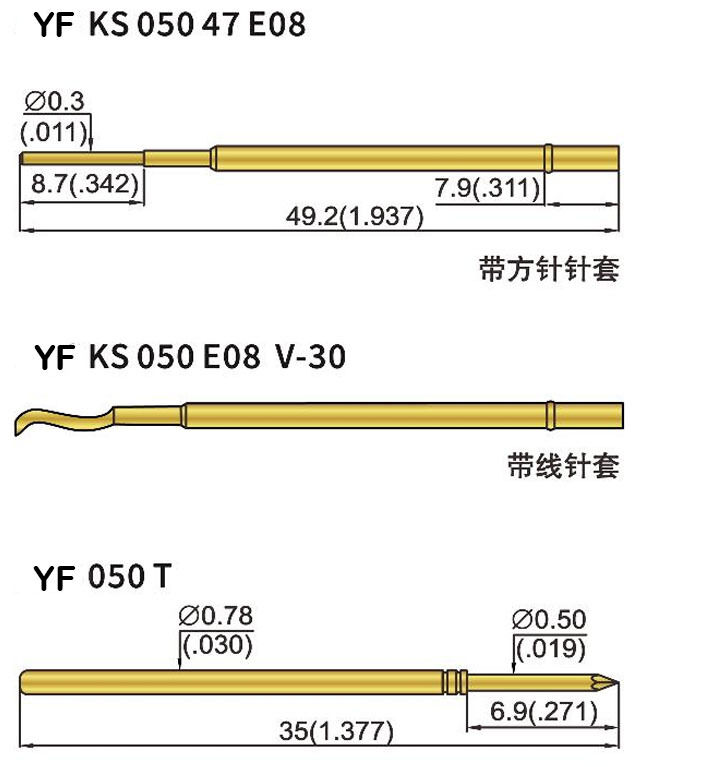

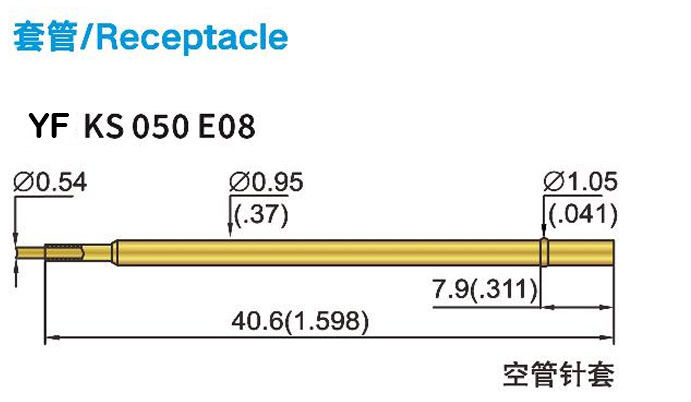

Production Specifications
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 0

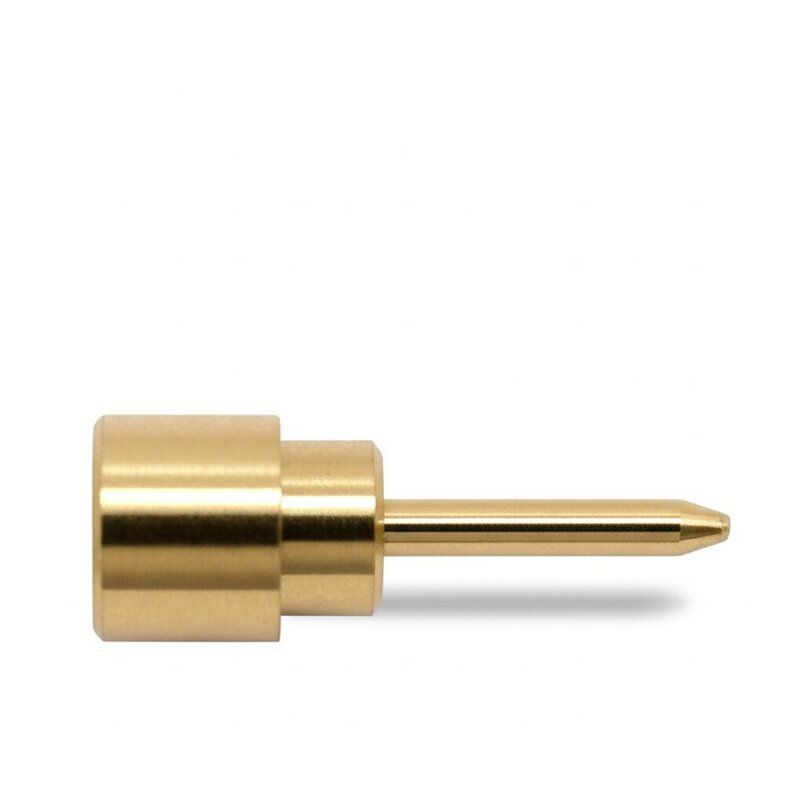

Product Images
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 1
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 2
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 3
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 4
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 5

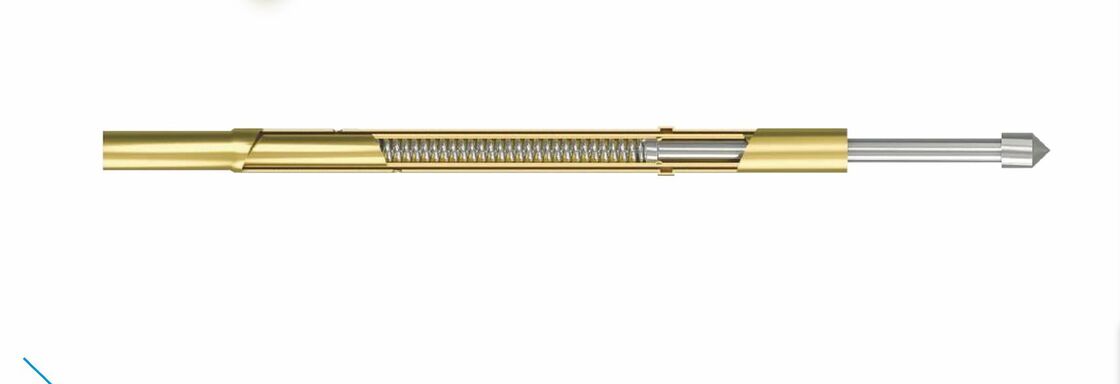

Detailed Component Illustration
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 6

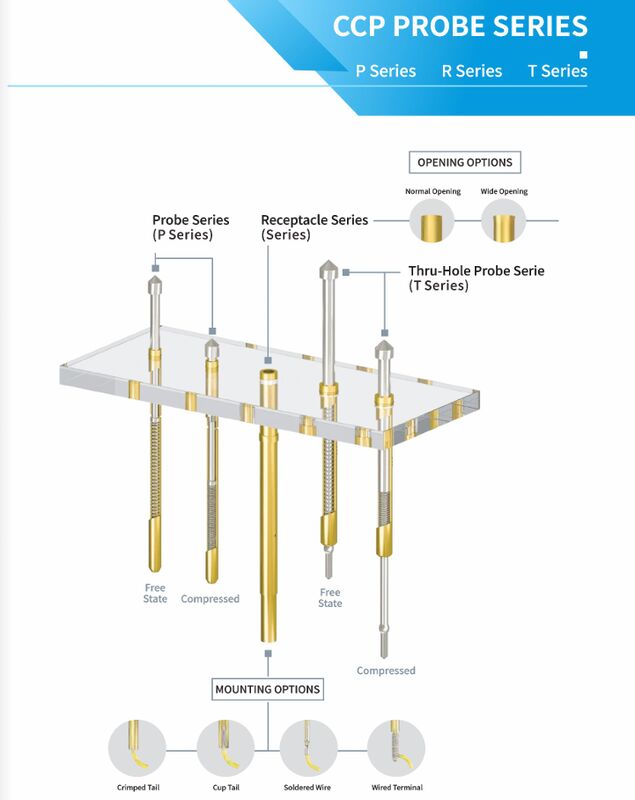

Comparison of different test probe tip types and configurations
Customization Options
At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.
Manufacturing Process
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 7
Our probe manufacturing facility
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 8
Quality control inspection
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 9
Packaged probes ready for shipment
