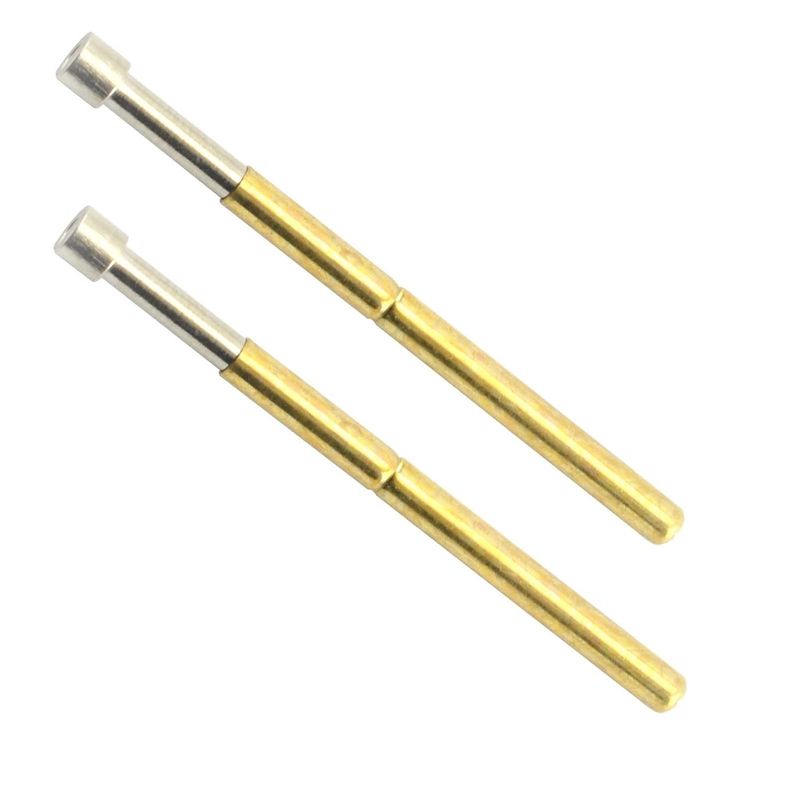

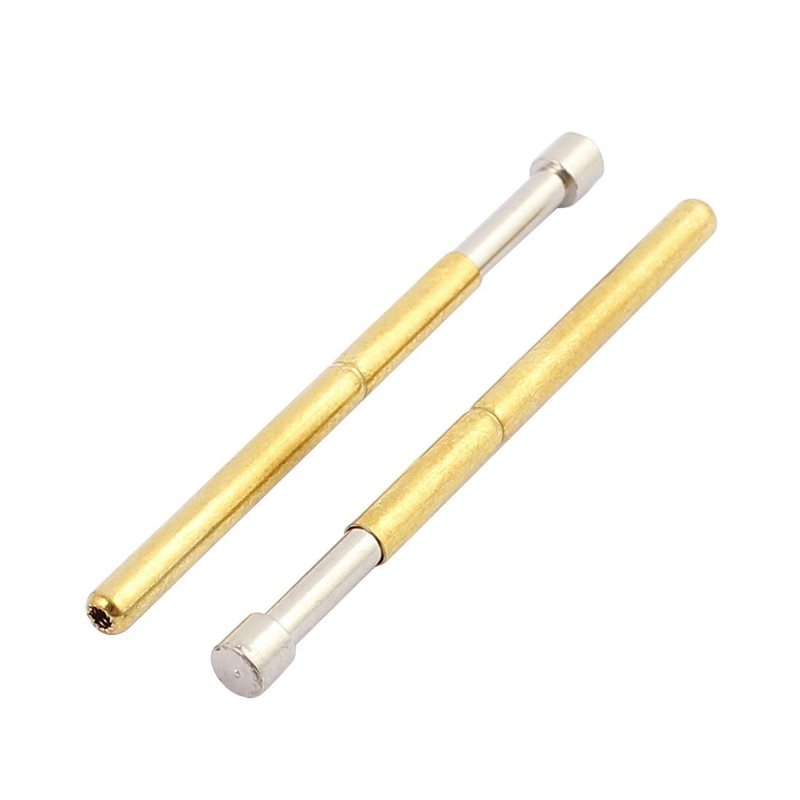

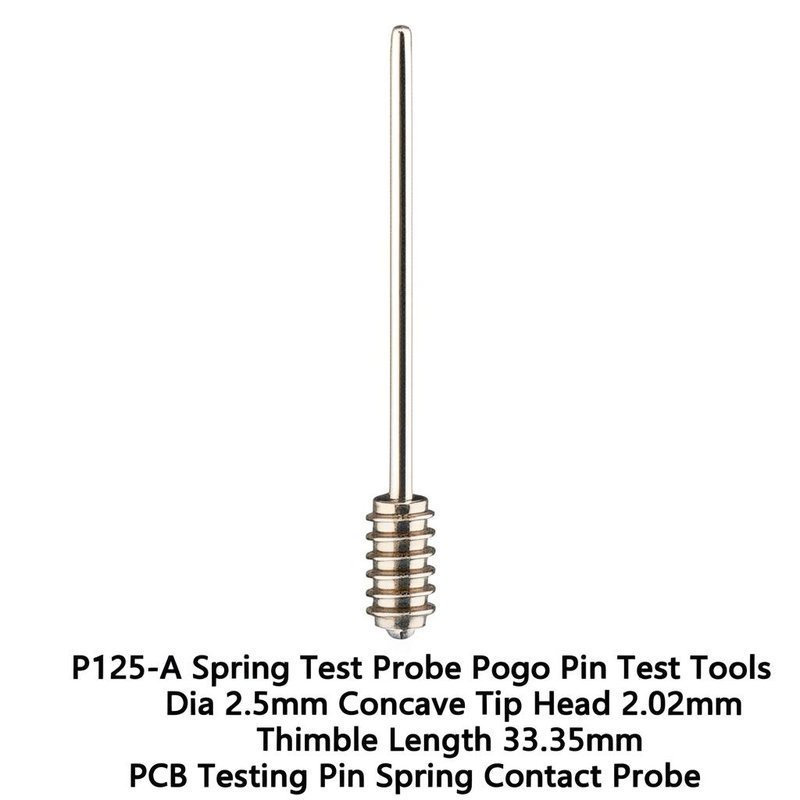

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

5A Current Spring Test Probe

50m Ohm Resistance Pogo Pin

33.35mm Length PCB Testing Pin

Lugar de origen:

Porcelana

Nombre de la marca:

WINNER

Certificación:

ISO9100

Éntrenos en contacto con
Pida una cita
P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing
Detalles del producto
Nombre del producto:
sonda de prueba de tamaño estándar
Émbolo:
Becu
barril:
Latón
Primavera:
Acero inoxidable
Disponibilidad:
Tamaños personalizados disponibles
Revestimiento:
Chapado en oro
Cantidad mínima de pedido:
100 piezas
Resaltar:

5A Current Spring Test Probe

,

50m Ohm Resistance Pogo Pin

,

33.35mm Length PCB Testing Pin

Pago y términos de envío
Cantidad de orden mínima
1 unidad
Precio
999
Detalles de empaquetado
Empaque neutrial o con logotipo OEM
Tiempo de entrega
5-8 días laborables
Condiciones de pago
LC, Unión Occidental, T/T
Capacidad de la fuente
100000 rollos por mes
Productos relacionados
Buen precio Spring Test Probe P156 H, 100Pcs Spring Loaded Test Pin, 2.36mm Brass Spring Probe with 9 Claws, Industrial Supplies for Testing and Replacement, Durable and Accurate Computer Mac en línea

Spring Test Probe P156 H, 100Pcs Spring Loaded Test Pin, 2.36mm Brass Spring Probe with 9 Claws, Industrial Supplies for Testing and Replacement, Durable and Accurate Computer Mac

Consiga el mejor precio
Buen precio Spring Test Probes, 100Pcs P125-Q High Accuracy Round Pogo Pins for PCB Board Testing Contact en línea

Spring Test Probes, 100Pcs P125-Q High Accuracy Round Pogo Pins for PCB Board Testing Contact

Consiga el mejor precio
Buen precio 100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing en línea

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

Consiga el mejor precio
Buen precio P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing en línea

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

Consiga el mejor precio
Éntrenos en contacto con
Contacto ahora
Descripción de producto
P125-A Spring Test Probe Pogo Pin

High-quality replacement probes for extending the life of your test station with concave tip head design.

Key Features

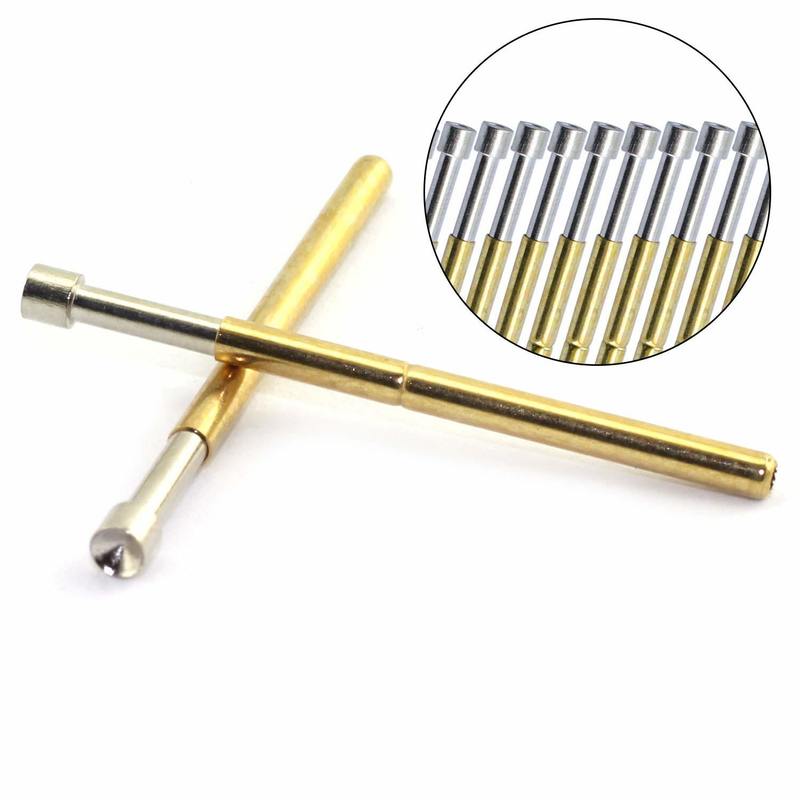

  • Concave tip head design for precise contact
  • Premium materials: heat-treated beryllium copper plunger, gold-plated phosphor bronze barrel, and gold-plated stainless steel wire spring
  • Excellent conductivity and durability for repeated use
  • Ideal for PCB conductive testing and component access on printed circuit assemblies
  • Perfect for testing long lead feet, terminals, and wrapping posts

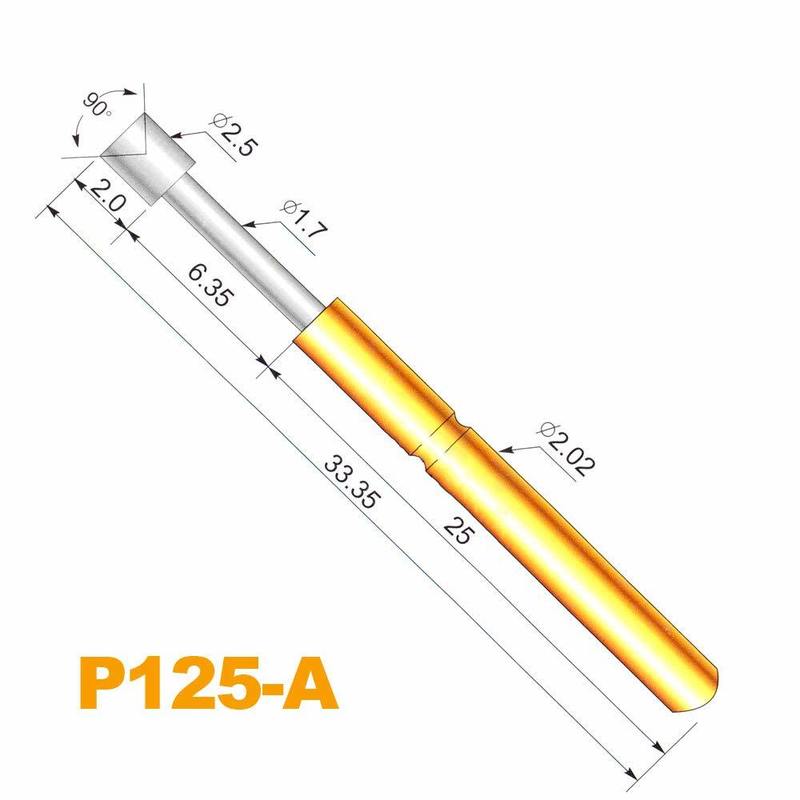

Technical Specifications
Model P125-A
Head Diameter 2.5mm
Tube Diameter 2.02mm
Shank Diameter 1.7mm
Length 33.35mm
Sheath Diameter 2.36mm
Drill Size 2.4mm
Minimum Test Distance 3.18mm
Full Stroke 6.35mm
Spring Pressure 180g
Current 5A
Resistance 50m Ohm
Color Gold + Silver
Test Probe Selection Guide

Test probes are available from many manufacturers with similar constraints. When selecting a test probe receptacle, the tip choice is the most critical consideration.

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing 0
Detailed illustration of test probe components and construction
P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing 1
Various test probe tip types
Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization to meet your specific requirements:

  • Custom diameters to match your specifications
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.
P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing 2
Our probe manufacturing facility
P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing 3
Quality control inspection
P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing 4
Packaged probes ready for shipment
